Laptops


10th & New 11th Generation Laptops

Note:  Passmark software compares the relative speeds of the different processors.   We have posted the passmark results under the prices listed for each processor so one can compare speeds of different processors in order for you to make a more educated decision as to how much speed affects the prices.   Speed, quality, capacity, and support all affect the price of a system.

Model 3146 14″



Product Highlights

    • 11th Gen Intel Core i5-1135G7 Processor
    • 14″ Thin Bezel Full HD, Wide View Angle, 72% NTSC Matte Display
    • Intel Iris Xe Graphics
    • 8GB DDR4 at 3200MHz
    • 500GB Western Digital Blue SN550 M.2 NVMe
    • Intel Wireless Wi-Fi 6 AX201+ Bluetooth
    • White-LED illuminated keyboard
    • Thunderbolt 4 connectivity
    • Windows 10 Home 64-Bit Edition
  • 0.69 inches thin Ultra-slim design
    • CORE i5-1135G7 2.4 GHz w/8 GB $1330

      (Passmark speed benchmark = 10105)

  • Core i7-1165G7 2.8 GHz w/8 GB $1451

    (Passmark speed benchmark = 10478)

    Priced with Windows 10 Home 64 Bit (Windows 10 Pro optional add $60)

0.69 Inches
Ultra-Slim
Design

Smooth, slim, and trim. 3641Z blends substance with style. We’ve assembled the latest high end technologies into an ultra-slim, sleek and stylish body. Best of all, it measures only 0.69 inches thin and weighs a mere 3.1 lbs.

New 11th Generation
Intel Core Processor

An 11th Gen Intel Core processor powers 3641Z’s amazing capabilities. 20% faster than its predecessor, and equipped with Intel’s new Iris Xe integrated GPU technology, it packs industry-leading performance, graphics, and AI acceleration into 3641Z’s slim shape. Get the technology that empowers creativity.

DDR4-3200 RAM

Take advantage of faster clock speeds and bandwidth with next generation DDR4 memory. 64GB of Dual-Channel memory at 3200MHz delivers top performance for the most demanding and complex high-end games and media.

Thin Bezel
Big Screen

NP3641Z’s slimmer bezels and smaller footprint make this compact powerhouse a highly-portable take-anywhere device to handle your most demanding tasks and most dazzling entertainment. Among the smallest in its class, everything shrunk but its 14″ screen-size and its vast capabilities. Get the vibrant, colorful, eye-opening content you crave in a machine that packs-up fast and travels small.

Wide View Angle
72% NTSC Panel

Graphics and video explode onto your screen in perfect detail. 3641Z’s 170-degree wide viewing angle 72% NTSC display renders the best vivid broad-spectrum color, breathing life into every frame you see. Enjoy an exceptional viewing experience at virtually any angle.

Multi-Display
Capability

Work across 3 screens and see the bigger picture. Your workstation supports up to 2 additional monitors via HDMI and Thunderbolt 4 ports. Approach complex or large-scale projects from different angles at the same time.

High Performance
PCIe Gen4 X 4 Capable

Wait less. Play more. The 3146Z features ultra-fast speed PCIe Gen4 x4 SSD capabilities for load speeds of up to 7000MB/s* for blazing fast boot times and game loading.

Thunderbolt 4 with
Power Delivery Input

Maximize NP3641Z’s capabilities with its 40Gbps Thunderbolt 4 port, the new standard in high speed flexibility. Connect and quickly access extra storage at lightning fast rates, or support an additional display at 8K resolution, or two displays in 4K. Daisy chain more devices than before and more securely. 3641Z can charge while connected to Power Delivery Input (PD-In) docking, and connected peripherals can wake it from sleep with just a touch or key-press. The possibilities are endless.

Next Generation
Wi-Fi 6 Connection

Stop competing for bandwidth and start playing to win. Wi-Fi 6 networking technology provides tremendous gains in both bandwidth and speeds, and is designed to meet the needs of networks hosting more and more devices. Fast, secure, and power-efficient, Wi-Fi 6 increases network capacity 400% and data rates by as much as 300% over the previous generation.

Illuminated
Keyboard

Light up your words with 3641Z’s white illuminated keyboard. This amazing technology delivers illumination bright enough to make typing and gaming easy and fun in low-light environments, even in the dark.Processor

Specifications

11th Generation Intel Core i7-1165G7 Processor (2.80GHz Base / 4.70GHz Turbo), 4 Cores, 12MB Smart Cache
11th Generation Intel Core i5-1135G7 Processor (2.40GHz Base / 4.20GHz Turbo), 4 Cores, 8MB Smart Cache

Memory

Supports Dual Channel DDR4
Two 260Pin SODIMM sockets, support for DDR4 up to 3200MHz (Real operation frequency depends on processor)
Expandable up to 64GB, depends on 8GB/16GB/32GB SODIMM module.

Display

14” Full HD (1920×1080) Wide View Angle, 72% NTSC Display, Matte Finished

Graphics
Processor

Intel Iris Xe Graphics (Integrated in 11th Gen Intel Core i5 / i7 Processor)
– Microsoft® DirectX® 12 Compatible
– HDR Support
– Rec. 2020 (Wide Color Gamut)

Storage

One M.2 2280 SSD, PCIe Gen4x4 interface

Audio System

High Definition audio interface
Built-in Array Microphone
2 Built-in Speakers

Pointing Device

Integrated Click pad with Microsoft PTP multi-gesture and scrolling function

Keyboard

Multi languages A4 size isolated illuminated keyboard (White Color)

I/O Ports

1 HDMI output Port (with HDCP)
1 Thunderbolt 4 combo port with Power Delivery DC in (Type C)
1 USB 3.2 Gen 2 Port (Type C)
2 USB 3.2 Gen 1 Ports (Type-A)
1 2-in-1 Audio Jack (Headphone / Microphone)
1 RJ-45 LAN (10/100/1000Mbps)

Slots

6-in-1 Card Reader (MMC/RSMMC/SD/Mini-SD/SDHC/SDXC)
Two M.2 Card Slots
– 1st for WLAN Combo M.2 2230 Card with PCIe and USB interface
– 2nd for SSD M.2 2280 Card with PCIe Gen4x4 interface

Communication

Built-in Gigabit Ethernet LAN
Intel Dual Band Wireless-Wi-Fi 6 AX201 + Bluetooth, M.2 interface

Security

Kensington Lock

Power System

Embedded 4 cells Smart Lithium-Ion battery pack 49WH
Full Range AC-in 100~240V, 50~60Hz, 65W AC Adapter, DC output 19V, 3.42A

OS Support

Windows 10 (64-bit)

Certificate

Windows 10 (64-bit) Logo
HDMI Logo

Physical Characteristic

3.1 LBs including bare bone and 49WH Battery Pack
12.79″ (w) x 8.86″ (d) x 0.69″ (h)

Other Features

Built-in 1.0M HD Video Camera
FlexiCharger
Windows Mixed Reality Compatible

Specifications are subject to change without notice

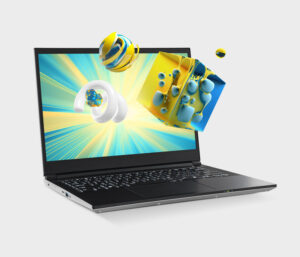

Model 3550U 15.6″

(Option to have two m.2 SSD hard drives)

    • Product Highlights

      • 11th Gen Intel Core i5-1135G7 Processor
      • 15.6″ Thin Bezel Full HD, Wide View Angle Matte Display
      • Intel Iris Xe Graphics
      • 8GB DDR4 at 3200MHz
      • 1TB Western Digital Blue SN550 M.2 NVMe
      • Intel Wireless Wi-Fi 6 AX201+ Bluetooth
      • Thunderbolt 4 connectivity
      • Windows 10 Home 64-Bit Edition
      • Single Zone Multi-Color illuminated keyboard
      • 0.78 inches thin slim design

CORE i5-1135G7 2.40 GHz w/8 GB $1327

(Passmark speed benchmark = 10105)

CORE i7-1165G7 2.20 GHz w/8 GB $1453

(Passmark speed benchmark = 10478)

0.78 Inches
Slim Design

Strong body, smart fit. 3550U’s remarkably thin shape conceals its advanced capabilities in just 0.78 inches of machined metal.

New 11th Generation
Intel Core Processor

An 11th Gen Intel Core processor powers 3550U’s amazing capabilities. 20% faster than its predecessor, and equipped with Intel’s new Iris Xe integrated GPU technology, it packs industry-leading performance, graphics, and AI acceleration into NP3550U’s slim shape. Get the technology that empowers creativity.

DDR4-3200 RAM

Take advantage of faster clock speeds and bandwidth with next generation DDR4 memory. 64GB of Dual-Channel memory at 3200MHz delivers top performance for the most demanding and complex high-end games and media.

Narrow Bezel
Full HD Display
Wide View Angle

Slim and sleek, its narrow bezels measure just 0.21″ thin and provide an astonishing 92% screen-to-body ratio. 3550U fits a 15.6″ display into a typically 14″ laptop frame. Plus its Full HD panel renders incredibly vivid colors and at dramatically wider viewing angles for the ultimate viewing experience.

Multi-Display
Capability

Work across 3 screens and see the bigger picture. Your workstation supports up to 2 additional monitors via HDMI and Thunderbolt 4 ports. Approach complex or large-scale projects from different angles at the same time.

Intel Iris Xe
Graphics

Unlock a powerhouse of creativity with 3550U’s advanced and intelligent Intel Iris Xe graphics card. Enjoy stunning 1080p gaming at a smooth 60fps, and rapidly render in 4K. Design and export complex files, images and video, and outpace the scale of growing workloads with the speed of AI-boosted technologies. Spend more time creating and less time waiting.

High Performance
PCIe Gen4 X 4 Capable

Wait less. Play more. The 3550U features ultra-fast speed PCIe Gen4 x4 SSD capabilities for load speeds of up to 7000MB/s* for blazing fast boot times and game loading.

Thunderbolt 4 with
Power Delivery Input

Maximize 3550U’s capabilities with its 40Gbps Thunderbolt 4 port, the new standard in high speed flexibility. Connect and quickly access extra storage at lightning fast rates, or support an additional display at 8K resolution, or two displays in 4K. Daisy chain more devices than before and more securely. NP3550U can charge while connected to Power Delivery Input (PD-In) docking, and connected peripherals can wake it from sleep with just a touch or key-press. The possibilities are endless.

Next Generation
Wi-Fi 6 Connection

Stop competing for bandwidth and start playing to win. Wi-Fi 6 networking technology provides tremendous gains in both bandwidth and speeds, and is designed to meet the needs of networks hosting more and more devices. Fast, secure, and power-efficient, Wi-Fi 6 increases network capacity 400% and data rates by as much as 300% over the previous generation.

Customized
Single Color
Illuminated
Keyboard

Our sleek single color illuminated keyboard enhances the modern, sophisticated look of your 3550U. Choose from 15 colors to suit your mood or your lifestyle at any moment, wherever that might be.

Specifications

Processor 11th Generation Intel Core i7-1165G7 Processor (2.80GHz Base / 4.70GHz Turbo), 4 Cores, 12MB Smart Cache
11th Generation Intel Core i5-1135G7 Processor (2.40GHz Base / 4.20GHz Turbo), 4 Cores, 8MB Smart Cache
Memory Supports Dual Channel DDR4
Two 260Pin SODIMM sockets, support for DDR4 up to 3200MHz (Real operation frequency depends on processor)
Expandable up to 64GB, depends on 8GB/16GB/32GB SODIMM module.
Display 15.6” Full HD (1920×1080) Wide View Angle, Matte Finished
Graphics
Processor

Intel Iris Xe Graphics (Integrated in 11th Gen Intel Core i5 / i7 Processor)
– Microsoft® DirectX® 12 Compatible
– HDR Support
– Rec. 2020 (Wide Color Gamut)

Storage One M.2 2280 SSD, PCIe Gen4x4 interface
One M.2 2280 SSD, SATA/PCIe Gen3x4 interface
Audio System High Definition audio interface
Built-in Array Microphone
2 Built-in Speakers
Pointing Device Integrated Click pad with Microsoft PTP multi-gesture and scrolling function
Keyboard Multi languages, Single Zone Multi-Color illuminated full size keyboard with numeric pad. (15 colors to select)
I/O Ports 1 HDMI output Port (with HDCP)
1 Thunderbolt 4 combo port with Power Delivery DC in (Type C)
1 USB 3.2 Gen 2 Port (Type C)
1 USB 3.2 Gen 2 Port (Type-A)
1 USB 2.0 Port (Type-A)
1 2-in-1 Audio Jack (Headphone / Microphone)
1 RJ-45 LAN (10/100/1000Mbps)
Slots 6-in-1 Card Reader (MMC/RSMMC/SD/Mini-SD/SDHC/SDXC)
Three M.2 Card Slots
– 1st for WLAN Combo M.2 2230 Card with PCIe and USB interface
– 2nd for SSD M.2 2280 Card with PCIe Gen4x4 interface
– 3rd for SSD M.2 2280 Card with SATA / PCIe Gen3x4 interface
Communication Built-in Gigabit Ethernet LAN
Intel Dual Band Wireless-Wi-Fi 6 AX201 + Bluetooth, M.2 interface
Security Kensington Lock
Intel PTT (Platform Trust Technology)
Power System Embedded Polymer Smart Lithium-Ion battery pack 73WH
Full Range AC-in 100~240V, 50~60Hz, 65W AC Adapter, DC output 19V, 3.42A
OS Support Windows 10 (64-bit)
Certificate Windows 10 (64-bit) Logo
HDMI Logo
Physical Characteristic 3.84 LBs including bare bone and 73WH Battery Pack
14.06″ (w) x 8.68″ (d) x 0.78″ (h)
Other Features Metal top and bottom case
Built-in 1.0M HD Video Camera
FlexiCharger
Windows Mixed Reality Compatible
Specifications are subject to change without notice

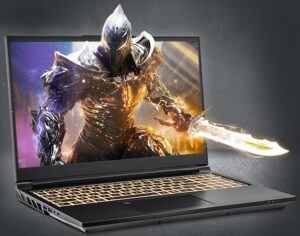

Model 7858PQ-S 15.6″

(Option to have two m.2 SSD hard drives & one 2.5″ Sata)

Product Highlights

  • 10th Gen Intel Core i7-10870H Processor
  • 15.6″ Thin Bezel Full HD 144Hz, Wide View Angle Matte Display
  • NVIDIA GeForce RTX 3060 6GB GDDR6
  • 16GB DDR4 at 2933MHz (1 x 16GB)
  • 1TB Western Digital Blue SN550 M.2 NVMe
  • Intel Wireless Wi-Fi 6 AX201+ Bluetooth
  • Single Zone Multi-Color illuminated keyboard
  • Windows 10 Home 64-Bit Edition

(17.3″) CORE i7-10870H   w/16 GB $1916

(Passmark speed benchmarks = 15862)

8 core / 16 thread
Intel Core i7-10870H

Unleash the power lurking at the heart of NP7858PQ. Equipped with Intel’s superb 10th Gen Core i7-10870H processor, the latest generation of Intel mobile CPUs that can be boosted to 5.0 GHz clock speeds. Its 8 powerful cores plus hyper-threading provides up to 16 threads to deftly handle heavy multitasking loads for creators and gamers alike. Efficiently render and stream 4K video, and experience smooth, fast, and flawless gameplay, 3D modeling and rendering, and more.

DDR4-2933 RAM

Take advantage of faster clock speeds and bandwidth with next generation DDR4 memory. 64GB of Dual-Channel memory at 2933MHz delivers top performance for the most demanding and complex high-end games and media.

NVIDIA GeForce
RTX 3060
Graphics

Equipped with NVIDIA’s cutting-edge GeForce RTX 3060 graphics card, 7858PQ empowers the future of gaming and content creation. Leverage next-generation ray-tracing and tensor cores, thousands of shader processors, and AI-based technologies for eye-opening gains in speed, rendering, realism, and efficiency.

Tight Bezels,
Big Screen

N7858PQ’s slimmer bezels and smaller footprint make this compact powerhouse a highly-portable take-anywhere device to handle your most demanding tasks and most dazzling entertainment. Among the smallest in its class, everything shrunk but its 15.6″ screen-size and its vast capabilities. Get the vibrant, colorful, eye-opening content you crave in a machine that packs-up fast and travels small.

144Hz Display
Wide View Angle

Capture huge fast action in perfect detail. At 144Hz refresh rates you get sharp brilliant picture quality 144 times per second. No blurs and no ghosting. The 7858PQ’s 170 degree wide angle display renders the best vivid broad-spectrum color, breathing life into every frame you see. Experience color-rich gaming the way it’s meant to be.

Multi-Display
Capability

Overwhelm your senses with 4x the screens. 7858PQ supports up to 3 additional monitors via HDMI and Display-Port so you can explore fantastic worlds in full breathtaking HD surround.

Improved
Cooling Design

Always cool under pressure. 7858PQ rapidly sheds heat and maintains optimal performance. Increased air vents drive heat away from the CPU and GPU faster, and a new cooling fan design uses more blades to dramatically increase the air flow volume.

Next Generation
Wi-Fi Connection

Stop competing for bandwidth and start playing to win. Wi-Fi 6 networking technology provides tremendous gains in both bandwidth and speeds, and is designed to meet the needs of networks hosting more and more devices. Fast, secure, and power-efficient, Wi-Fi 6 increases network capacity 400% and data rates by as much as 300% over the previous generation.

Customizable
Single Color
Illuminated
Keyboard

Our sleek single color illuminated keyboard enhances the modern, sophisticated look of your 7858PQ. Choose from 15 colors to suit your mood or your lifestyle at any moment, wherever that might be.

Sound Blaster Cinema 6
with Large Speakers

Sound Blaster Cinema 6 technologies put you in the center of the action and the height of the drama with hardware and optimally-tuned audio profiles to inspiring perfection. Transform flat two-dimensional noise into full life-like 3D soundscapes. Experience rich, impressive audio that even true connoisseurs can appreciate.

SPECIFICATIONS

Processor
10th Generation Intel Core i7-10870H Processor (2.20 GHz), 8 core / 16 thread
Core Logic
Intel HM470 Express Chipset
Memory
Supports Dual Channel DDR4
Two 260Pin SODIMM sockets, support for DDR4 up to 2933MHz (Real operation frequency depends on processor)
Expandable up to 64GB, depends on 8GB/16GB/32GB SODIMM module.
Display
15.6” Full HD (1920×1080) 144Hz, Wide View Angle, Matte Finished
Graphics
Processor Switchable GPU by Microsoft Hybrid Graphics – NVIDIA GeForce RTX 3060 GPU / Intel UHD Graphics

NVIDIA GeForce RTX 3060, 6GB GDDR6
– Support PCIe x16
– Microsoft DirectX 12 Compatible
– NVIDIA CUDA Technology
– Support 4 active displays
– Maximum TGP: 105 W (including 15W Dynamic Boost 2.0)

Intel UHD Graphics (Integrated in Core i7-10870H processor)
– HDR Support
– Rec. 2020 (Wide Color Gamut)
– Microsoft DirectX 12 Compatible

Storage
One changeable 2.5” 7.0mm(H) HDD/SSD, SATA interface
One M.2 2280 SSD, SATA / PCIe Gen3x4 interface or Two M.2 2280 PCIe Gen3x4 interface (RAID 0/1)
Audio System
High Definition audio interface
Built-in Array Microphone
2 Built-in Speakers
Sound Blaster Cinema 6
Pointing Device
Integrated touchpad with Microsoft PTP multi-gesture and scrolling function
Keyboard
Multi languages, Single Zone Multi-Color illuminated full size keyboard with numeric pad. (15 colors to select)
Fully programmable macro capability – customize individual key as hot key / multiple keystrokes in one key
I/O Ports
1 HDMI output Port (with HDCP)
1 Mini DisplayPort 1.4 output Port
1 DisplayPort 1.4 over USB 3.2 Gen 2 (Type-C)
1 USB 2.0 Port (Type A)
1 USB 3.2 Port (Type A)
1 USB 3.2 Gen 2 Port (Type A)
1 2-in-1 Audio Jack (Headphone / Microphone)
1 Microphone Jack
1 RJ-45 LAN (10/100/1000Mbps)
Slots
6-in-1 Push-Push Card Reader (MMC/RSMMC/SD/Mini-SD/SDHC/SDXC)
Three M.2 Card Slots
– 1st for WLAN Combo M.2 2230 Card with PCIe and USB interface
– 2nd for SSD M.2 2280 Card with SATA / PCIe Gen3 x4 interface
– 3rd for SSD M.2 2280 Card with PCIe Gen3x4 interface
Communication
Built-in Gigabit Ethernet LAN
Intel Dual Band Wireless Wi-Fi 6 AX + Bluetooth, M.2 interface
Killer Dual Band Wireless-AX 1650X + Bluetooth, M.2 interface
Security
Kensington Lock
Intel PTT (Platform Trust Technology)
Power System
Removable 4 cells Smart Lithium-Ion battery pack 48.96WH
Full Range AC-in 100~240V, 50~60Hz, 180W AC Adapter, DC output 19.5V, 9.23A
OS Support
Windows 10 (64-bit)
Certificate
Windows 10 (64-bit) Logo
HDMI Logo
Physical Characteristic
4.85 lbs including bare bone and 48.96WH Battery Pack
14.21″ (w) x 10.16″ (d) x 1.10″ (h)
Other Features
Metal top case
Built-in 1.0M HD Video Camera
FlexiCharger
Virtual Reality ready via HDMI from dGPU
Windows Mixed Reality Compatible
Specifications are subject to change without notice

Model 7877PQS

17.3″

Product Highlights

  • 10th Gen Intel Core i7-10870H Processor
  • 17.3″ Thin Bezel Full HD 144Hz, Wide View Angle, 72% NTSC Matte Display
  • NVIDIA GeForce RTX 3060 6GB GDDR6
  • 16GB DDR4 at 2933MHz (1 x 16GB)
  • 1TB Western Digital Blue SN550 M.2 NVMe
  • Intel Wireless Wi-Fi 6 AX201+ Bluetooth
  • Single Zone Multi-Color illuminated keyboard
  • Windows 10 Home 64-Bit Edition

(17.3″) CORE i7-10870H   w/16 GB $1981

(Passmark speed benchmarks = 15862)

8 core / 16 thread
Intel Core i7-10870H

Unleash the power lurking at the heart of 7877PQ. Equipped with Intel’s superb 10th Gen Core i7-10870H processor, the latest generation of Intel mobile CPUs that can be boosted to 5.0 GHz clock speeds. Its 8 powerful cores plus hyper-threading provides up to 16 threads to deftly handle heavy multitasking loads for creators and gamers alike. Efficiently render and stream 4K video, and experience smooth, fast, and flawless gameplay, 3D modeling and rendering, and more.

DDR4-2933 RAM

Take advantage of faster clock speeds and bandwidth with next generation DDR4 memory. 64GB of Dual-Channel memory at 2933MHz delivers top performance for the most demanding and complex high-end games and media.

NVIDIA GeForce
RTX 3060 Graphics

Equipped with NVIDIA’s cutting-edge GeForce RTX 3060 graphics card, 7877PQ empowers the future of gaming and content creation. Leverage next-generation ray-tracing and tensor cores, thousands of shader processors, and AI-based technologies for eye-opening gains in speed, rendering, realism, and efficiency.

Thin Bezels,
Generous
Screen Size

Seeing the big picture just got easier on the eye and shoulder. 7877PQ dropped a size but kept its giant screen. Thinner bezels make this feat possible. Enjoy the finest entertainment in rich vibrant color at large scale on a huge 17.3” screen without the bulk of a 17.3” footprint. All the benefits of a big game display in a smaller frame.

144Hz Wide View Angle
72% NTSC Panel

Capture huge fast action in perfect detail. At 144Hz refresh rates you get sharp brilliant picture quality 144 times per second. No blurs and no ghosting. 7877PQ’s 170 degree wide angle 72% NTSC display renders the best vivid broad-spectrum color, breathing life into every frame you see. Experience color-rich gaming the way it’s meant to be.

Multi-Display
Capability

Overwhelm your senses with 4x the screens. NP7877PQ supports up to 3 additional monitors via HDMI and Display-Port so you can explore fantastic worlds in full breathtaking HD surround.

Prolong the performance of your investment. 9670M’s cooling system continually flushes heat out of 4 separate vents, driven by new anti-dust cooling fans that reduce dust intake, perform cleaning cycles, and extend the long-term cooling capacity of your system, keeping both the CPU and GPU operating fast under optimal temperatures

Improved
Cooling Design

Always cool under pressure. NP7877PQ rapidly sheds heat and maintains optimal performance. More heat pipes drive heat away from the CPU and GPU faster, and a new cooling fan design uses more blades to dramatically increase the air flow volume..

Next Generation
Wi-Fi Connection

Stop competing for bandwidth and start playing to win. Wi-Fi 6 networking technology provides tremendous gains in both bandwidth and speeds, and is designed to meet the needs of networks hosting more and more devices. Fast, secure, and power-efficient, Wi-Fi 6 increases network capacity 400% and data rates by as much as 300% over the previous generation.

Customizable
Single Color
Illuminated
Keyboard

Our sleek single color illuminated keyboard enhances the modern, sophisticated look of your 7877PQ. Choose from 15 colors to suit your mood or your lifestyle at any moment, wherever that might be.

Sound Blaster Cinema 6
with Large Speakers

Sound Blaster Cinema 6 technologies put you in the center of the action and the height of the drama with hardware and optimally-tuned audio profiles to inspiring perfection. Transform flat two-dimensional noise into full life-like 3D soundscapes. Experience rich, impressive audio that even true connoisseurs can appreciate.

SPECIFICATIONS

Processor 10th Generation Intel Core i7-10870H Processor (2.20 GHz), 8 core / 16 thread
Core Logic Intel HM470 Express Chipset
Memory Supports Dual Channel DDR4
Two 260Pin SODIMM sockets, support for DDR4 up to 2933MHz (Real operation frequency depends on processor)
Expandable up to 64GB, depends on 8GB/16GB/32GB SODIMM module.
Display 17.3” Full HD (1920×1080) 144Hz Wide View Angle, 72% NTSC Display, Matte Finished
Graphics
Processor
Switchable GPU by Microsoft Hybrid Graphics – NVIDIA GeForce RTX 3060 GPU / Intel UHD Graphics

NVIDIA GeForce RTX 3060, 6GB GDDR6
– Support PCIe x16
– Microsoft DirectX 12 Compatible
– NVIDIA CUDA Technology
– Support 4 active displays
– Maximum TGP: 105 W (including 15W Dynamic Boost 2.0)

Intel UHD Graphics (Integrated in Core i7-10870H processor)
– HDR Support
– Rec. 2020 (Wide Color Gamut)
– Microsoft DirectX 12 Compatible

Storage One changeable 2.5” 7.0mm(H) HDD/SSD, SATA interface
One M.2 2280 SSD, SATA / PCIe Gen3x4 interface or Two M.2 2280 PCIe Gen3x4 interface (RAID 0/1)
Audio System High Definition audio interface
Built-in Array Microphone
2 Built-in Speakers
Sound Blaster Cinema 6
Pointing Device Integrated touchpad with Microsoft PTP multi-gesture and scrolling function
Keyboard Multi languages, Single Zone Multi-Color illuminated full size keyboard with numeric pad. (15 colors to select)
Fully programmable macro capability – customize individual key as hot key / multiple keystrokes in one key
I/O Ports 1 HDMI output Port (with HDCP)
1 Mini DisplayPort 1.4 output Port
1 DisplayPort 1.4 over USB 3.2 Gen 2 (Type-C)
1 USB 2.0 Port (Type A)
1 USB 3.2 Port (Type A)
1 USB 3.2 Gen 2 Port (Type A)
1 2-in-1 Audio Jack (Headphone / Microphone)
1 Microphone Jack
1 RJ-45 LAN (10/100/1000Mbps)
Slots 6-in-1 Push-Push Card Reader (MMC/RSMMC/SD/Mini-SD/SDHC/SDXC)
Three M.2 Card Slots
– 1st for WLAN Combo M.2 2230 Card with PCIe and USB interface
– 2nd for SSD M.2 2280 Card with SATA / PCIe Gen3 x4 interface
– 3rd for SSD M.2 2280 Card with PCIe Gen3x4 interface
Communication Built-in Gigabit Ethernet LAN
Intel Dual Band Wireless Wi-Fi 6 AX + Bluetooth, M.2 interface
Killer Dual Band Wireless-AX 1650X + Bluetooth, M.2 interface
Security Kensington Lock
Intel PTT (Platform Trust Technology)
Power System Removable 4 cells Smart Lithium-Ion battery pack 48.96WH
Full Range AC-in 100~240V, 50~60Hz, 180W AC Adapter, DC output 19.5V, 9.23A
OS Support Windows 10 (64-bit)
Certificate Windows 10 (64-bit) Logo
HDMI Logo
Physical Characteristic 5.51 lbs including bare bone and 48.96WH Battery Pack
15.59″ (w) x 10.32″ (d) x 1.16″ (h)
Other Features Built-in 1.0M HD Video Camera
FlexiCharger
Virtual Reality ready via HDMI from dGPU
Windows Mixed Reality Compatible
Specifications are subject to change without notice

Model 8770P 17.3″

(Option to have two m.2 SSD hard drives)10th Gen

Product Highlights

  • 10th Gen Intel Core i7-10870H Processor
  • 17.3″ Full HD 144Hz, Wide View Angle, 72% NTSC Matte Display
  • NVIDIA GeForce RTX 3060 6GB GDDR6
  • 16GB DDR4 at 2933MHz
  • 1TB Western Digital Blue SN550 M.2 NVMe
  • Intel Dual Band Wireless Wi-Fi 6 AX201 + Bluetooth
  • Single Zone Multi-Color illuminated keyboard
  • Windows 10 Home 64-Bit Edition
  • 0.78 inches thin slim design

(17.3″) CORE i7-10870H  2.6 GHz w/16 GB $2155

(Passmark speed benchmark = 15862)

Stylish 0.78”
Thin Slim Design

Unleash the power lurking at the heart of 8770P. Equipped with Intel’s superb 10th Gen Core i7-10870H processor, the latest generation of Intel mobile CPUs that can be boosted to 5.0 GHz clock speeds. Its 8 powerful cores plus hyper-threading provides up to 16 threads to deftly handle heavy multitasking loads for creators and gamers alike. Efficiently render and stream 4K video, and experience smooth, fast, and flawless gameplay, 3D modeling and rendering, and more.

Stylish 0.78”
Thin Slim Design

Among the slimmest in its class, 8770P delivers heavy-weight performance and power in a compact, machined, aluminum body measures only 0.78 inches thin. Its trim, sleek, and understated form makes it easier than ever to bring its heavy-hitting power wherever you need it.

DDR4-2933 RAM

Take advantage of faster clock speeds and bandwidth with next generation DDR4 memory. 64GB of Dual-Channel memory at 2933MHz delivers top performance for the most demanding and complex high-end games and media.

NVIDIA GeForce
RTX-3060 Graphics

Equipped with NVIDIA’s cutting-edge GeForce RTX 3060 graphics card, 8770P empowers the future of gaming and content creation. Leverage next-generation ray-tracing and tensor cores, thousands of shader processors, and AI-based technologies for eye-opening gains in speed, rendering, realism, and efficiency.

Thin Bezels,
Generous
Screen Size

Seeing the big picture just got easier on the eye and shoulder. NP8770P dropped a size but kept its giant screen. Thinner bezels make this feat possible. Enjoy the finest entertainment in rich vibrant color at large scale on a huge 17.3” screen without the bulk of a 17.3” footprint. All the benefits of a big game display in a smaller frame.

144Hz Wide View Angle
72% NTSC Panel

Capture huge fast action in perfect detail. At 144Hz refresh rates you get sharp brilliant picture quality 144 times per second. No blurs and no ghosting. 8770P’s 170 degree wide angle 72% NTSC display renders the best vivid broad-spectrum color, breathing life into every frame you see. Experience color-rich gaming the way it’s meant to be.

Multi-Display
Capability

Broaden your horizons. Add up to 3 additional displays, and see the big picture, whether it’s games, editing video, streaming to your fans, or all 4 at once.

Improved
Cooling Design

Always cool under pressure. 8770P rapidly sheds heat and maintains optimal performance. The 4-Way Heat Dissipations drive heat away from the CPU and GPU faster, and a new cooling fan design uses more blades to dramatically increase the air flow volume.

Next Generation
Wi-Fi Connection

Stop competing for bandwidth and start playing to win. Wi-Fi 6 networking technology provides tremendous gains in both bandwidth and speeds, and is designed to meet the needs of networks hosting more and more devices. Fast, secure, and power-efficient, Wi-Fi 6 increases network capacity 400% and data rates by as much as 300% over the previous generation.

Thunderbolt 3
Connectivity

Handle everything with Thunderbolt 3 port! Maximize your data transfer rate at 2 times the performance of previous Gen 2 with the 40Gbps maximum though put or run a 4K Display at 60Hz to get the most out of your games.

Customizable
Single Color
Illuminated
Keyboard

Our sleek single color illuminated keyboard enhances the modern, sophisticated look of your 8770P. Choose from 15 colors to suit your mood or your lifestyle at any moment, wherever that might be.

Sound Blaster
ATLAS with
Smart Amplifier

Unlock breakthrough audio performance with advanced Sound Blaster Atlas drivers supported by the smart amp. Smart amplifier technology makes 8770P’s speakers louder and clearer, and produce more bass by pushing beyond a speaker’s crude factory-set limits. It manages heat and sound pressure in real-time to increase speaker volume and range. Atlas’s SBX audio processing and professionally-tuned profiles spin rich dramatic 3D soundscapes that put you right in the center of the action.

Specifications

Processor 10th Generation Intel Core i7-10870H Processor (2.2GHz), 8 core / 16 thread
Core Logic Intel HM470 Express Chipset
Memory Supports Dual Channel DDR4
Two 260Pin SODIMM sockets, support for DDR4 up to 2933MHz (Real operation frequency depends on processor)
Expandable up to 64GB, depends on 8GB/16GB/32GB SODIMM module
Display 17.3” Full HD (1920×1080) 144Hz, Wide View Angle Display, 72% NTSC Display, Matte Finished
Graphics
Processor
Switchable GPU by Microsoft Hybrid Graphics – NVIDIA GeForce RTX 3060 GPU / Intel UHD 630 Graphics
Support 4 active displays
Support NVIDIA Surround View via via HDMI x1, mini DP x1 and Thunderbolt 3 x1

NVIDIA GeForce RTX 3060, 6GB GDDR6
– Support PCIe x16
– Microsoft DirectX 12 Compatible
– NVIDIA PhysX
– NVIDIA CUDA Technology
– Maximum TGP: 105 W (including 15W Dynamic Boost 2.0)

Intel UHD 630 Graphics (Integrated in Intel Core i7 processor)
– HDR Support
– Rec. 2020 (Wide Color Gamut)
– Microsoft DirectX 12 Compatible

Storage One M.2 2280 SSD, SATA / PCIe Gen3x4 interface or Two M.2 2280 PCIe Gen3x4 interface (RAID 0/1)
Audio System High Definition audio interface
S/PDIF Digital output
Built-in Array Microphone
2 Built-in Speakers
Sound Blaster Atlas with Smart Amplifier
Pointing Device Built in Secure pad with Microsoft PTP multi-gesture and scrolling function
Keyboard Multi languages, Single Zone Multi-Color illuminated full size keyboard with numeric pad. (15 colors to select)
Fully programmable macro capability – customize individual key as hot key / multiple keystrokes in one key
I/O Ports 1 HDMI output Port (with HDCP)
1 Mini DisplayPort 1.4 output Port
1 Thunderbolt 3 Port
3 USB 3.2 Gen 1 Ports (Type A, 1 x powered USB port, AC/DC)
1 2-in-1 Audio Jack (Microphone / S/PDIF Optical output)
1 2-in-1 Audio Jack (Headphone / Microphone)
1 RJ-45 LAN (10/100/1000Mbps)
Slots MicroSD Push-Push Card reader up to UHS-ll
Three M.2 Card Slots
– 1st for WLAN Combo M.2 2230 Card with PCIe and USB interface
– 2nd for SSD M.2 2280 Card with SATA / PCIe Gen3x4 interface
– 3rd for SSD M.2 2280 Card with PCIe Gen3x4 interface
Communication Built-in Gigabit Ethernet LAN
Intel Dual Band Wireless Wi-Fi 6 AX + Bluetooth, M.2 interface
Security Kensington Lock
Area Fingerprint Reader
Intel PTT (Platform Trust Technology)
Power System Embedded 3 cells Polymer battery pack 73WH
Full Range AC-in 100~240V, 50~60Hz, 180W AC Adapter, DC output 19.5V, 9.23A
OS Support Windows 10 (64-bit)
Certificate Windows 10 (64-bit) Logo
HDMI Logo
Physical Characteristic 5.07 lbs. including bare bone and 73WH Battery Pack
15.60″ (w) x 10.43″ (d) x 0.78″ (h)
Other Features Al-alloy top, Palm rest and bottom case
Built-in 1.0M HD Video Camera
FlexiCharger
Virtual Reality ready
Windows Mixed Reality compatible
Specifications are subject to change without notice

Model 8770S-S 17.3″

Product Highlights

  • 10th Gen Intel Core i7-10870H Processor
  • 17.3″ Thin Bezel Full HD 144Hz, Wide View Angle, 72% NTSC Matte Display
  • NVIDIA GeForce RTX 3080
  • 32GB Dual Channel DDR4 at 2933MHz
  • 1TB Western Digital Blue SN550 M.2 NVMe
  • Killer Dual Band Wireless-AX 1650X + Bluetooth
  • Single Zone Multi-Color illuminated keyboard
  • 30 days No Dead Pixel Guarantee
  • Windows 10 Home 64-Bit Edition
  • 0.78 inches thin slim design

(17.3″) CORE i7-10870H  2.2 GHz w/32 GB $ 3036

(Passmark speed benchmark = 15862)

Stylish 0.78”
Thin Slim Design

Among the slimmest in its class, 8770S delivers heavy-weight performance and power in a compact, machined, aluminum body measures only 0.78 inches thin. Its trim, sleek, and understated form makes it easier than ever to bring its heavy-hitting power wherever you need it.

Stylish 0.78”
Thin Slim Design

Among the slimmest in its class, 8770S delivers heavy-weight performance and power in a compact, machined, aluminum body measures only 0.78 inches thin. Its trim, sleek, and understated form makes it easier than ever to bring its heavy-hitting power wherever you need it.

Thin Bezels,
Generous
Screen Size

Seeing the big picture just got easier on the eye and shoulder. 8378F2 dropped a size but kept its giant screen. Thinner bezels make this feat possible. Enjoy the finest entertainment in rich vibrant color at large scale on a huge 17.3” screen without the bulk of a 17.3” footprint. All the benefits of a big game display in a smaller frame.

NVIDIA GeForce
RTX 3080 Graphics
with Max-Q Technologies

Welcome to the future of gaming and content creation. NP8770S’s cutting-edge NVIDIA GeForce RTX 3080 16GB GPU with MAX-Q technologies has been designed from the bottom-up to optimize power, thermal control, and acoustics with AI-based technologies. Packed with next-generation ray-tracing and tensor cores, thousands of shader processors and AI-assisted processing, it quietly delivers mind-blowing and strikingly convincing realism, lightning fast. Seamless worlds of wonder await.

Thin Bezels,
Generous
Screen Size

Seeing the big picture just got easier on the eye and shoulder. 8770S dropped a size but kept its giant screen. Thinner bezels make this feat possible. Enjoy the finest entertainment in rich vibrant color at large scale on a huge 17.3” screen without the bulk of a 17.3” footprint. All the benefits of a big game display in a smaller frame.

144Hz Wide View Angle
72% NTSC Panel

Capture huge fast action in perfect detail. At 144Hz refresh rates you get sharp brilliant picture quality 144 times per second. No blurs and no ghosting. 8770S’s 170 degree wide angle 72% NTSC display renders the best vivid broad-spectrum color, breathing life into every frame you see. Experience color-rich gaming the way it’s meant to be.

Multi-Display
Capability

Broaden your horizons. Add up to 3 additional displays, and see the big picture, whether it’s games, editing video, streaming to your fans, or all 4 at once.

Improved
Cooling Design

Always cool under pressure. 8770S rapidly sheds heat and maintains optimal performance. The 4-Way Heat Dissipations drive heat away from the CPU and GPU faster, and a new cooling fan design uses more blades to dramatically increase the air flow volume.

Next Generation
Wi-Fi Connection

Stop competing for bandwidth and start playing to win. Wi-Fi 6 networking technology provides tremendous gains in both bandwidth and speeds, and is designed to meet the needs of networks hosting more and more devices. Fast, secure, and power-efficient, Wi-Fi 6 increases network capacity 400% and data rates by as much as 300% over the previous generation.

Thunderbolt 3
Connectivity

Handle everything with Thunderbolt 3 port! Maximize your data transfer rate at 2 times the performance of previous Gen 2 with the 40Gbps maximum thoughput or run a 4K Display at 60Hz to get the most out of your games.

Customizable
Single Color
Illuminated
Keyboard

Our sleek single color illuminated keyboard enhances the modern, sophisticated look of your 8770S. Choose from 15 colors to suit your mood or your lifestyle at any moment, wherever that might be.

Sound Blaster
ATLAS with
Smart Amplifier

Unlock breakthrough audio performance with advanced Sound Blaster Atlas drivers supported by the smart amp. Smart amplifier technology makes NP8770S’s speakers louder and clearer, and produce more bass by pushing beyond a speaker’s crude factory-set limits. It manages heat and sound pressure in real-time to increase speaker volume and range. Atlas’s SBX audio processing and professionally-tuned profiles spin rich dramatic 3D soundscapes that put you right in the center of the action.

SPECIFICATIONS

Processor 10th Generation Intel Core i7-10870H Processor (2.2GHz), 8 core / 16 thread
Core Logic Intel HM470 Express Chipset
Memory Supports Dual Channel DDR4
Two 260Pin SODIMM sockets, support for DDR4 up to 2933MHz (Real operation frequency depends on processor)
Expandable up to 64GB, depends on 8GB/16GB/32GB SODIMM module
Display 17.3” Full HD (1920×1080) 144Hz, Wide View Angle Display, 72% NTSC Display, Matte Finished
Graphics
Processor
Switchable GPU by Microsoft Hybrid Graphics – NVIDIA GeForce RTX 3080 GPU / Intel UHD 630 Graphics
Support 4 active displays
Support NVIDIA Surround View via via HDMI x1, mini DP x1 and Thunderbolt 3 x1

NVIDIA GeForce RTX 3080, 16GB GDDR6
– NVIDIA Max-Q Design
– Support PCIe x16
– Microsoft DirectX 12 Compatible
– NVIDIA PhysX
– NVIDIA CUDA Technology
– Maximum TGP: 105 W (including 15W Dynamic Boost 2.0)

Intel UHD 630 Graphics (Integrated in Intel Core i7 processor)
– HDR Support
– Rec. 2020 (Wide Color Gamut)
– Microsoft DirectX 12 Compatible

Storage One M.2 2280 SSD, SATA / PCIe Gen3x4 interface or Two M.2 2280 PCIe Gen3x4 interface (RAID 0/1)
Audio System High Definition audio interface
S/PDIF Digital output
Built-in Array Microphone
2 Built-in Speakers
Sound Blaster Atlas with Smart Amplifier
Pointing Device Built in Secure pad with Microsoft PTP multi-gesture and scrolling function
Keyboard Multi languages, Single Zone Multi-Color illuminated full size keyboard with numeric pad. (15 colors to select)
Fully programmable macro capability – customize individual key as hot key / multiple keystrokes in one key
I/O Ports 1 HDMI output Port (with HDCP)
1 Mini DisplayPort 1.4 output Port
1 Thunderbolt 3 Port
3 USB 3.2 Gen 1 Ports (Type A, 1 x powered USB port, AC/DC)
1 2-in-1 Audio Jack (Microphone / S/PDIF Optical output)
1 2-in-1 Audio Jack (Headphone / Microphone)
1 RJ-45 LAN (10/100/1000Mbps)
Slots MicroSD Push-Push Card reader up to UHS-ll
Three M.2 Card Slots
– 1st for WLAN Combo M.2 2230 Card with PCIe and USB interface
– 2nd for SSD M.2 2280 Card with SATA / PCIe Gen3x4 interface
– 3rd for SSD M.2 2280 Card with PCIe Gen3x4 interface
Communication Built-in Gigabit Ethernet LAN
Intel Dual Band Wireless Wi-Fi 6 AX + Bluetooth, M.2 interface
Security Kensington Lock
Area Fingerprint Reader
Intel PTT (Platform Trust Technology)
Power System Embedded 3 cells Polymer battery pack 73WH
Full Range AC-in 100~240V, 50~60Hz, 180W AC Adapter, DC output 19.5V, 9.23A
OS Support Windows 10 (64-bit)
Certificate Windows 10 (64-bit) Logo
HDMI Logo
Physical Characteristic 5.07 lbs. including bare bone and 73WH Battery Pack
15.60″ (w) x 10.43″ (d) x 0.78″ (h)
Other Features Al-alloy top, Palm rest and bottom case
Built-in 1.0M HD Video Camera
FlexiCharger
Virtual Reality ready
Windows Mixed Reality compatible
Specifications are subject to change without notice
